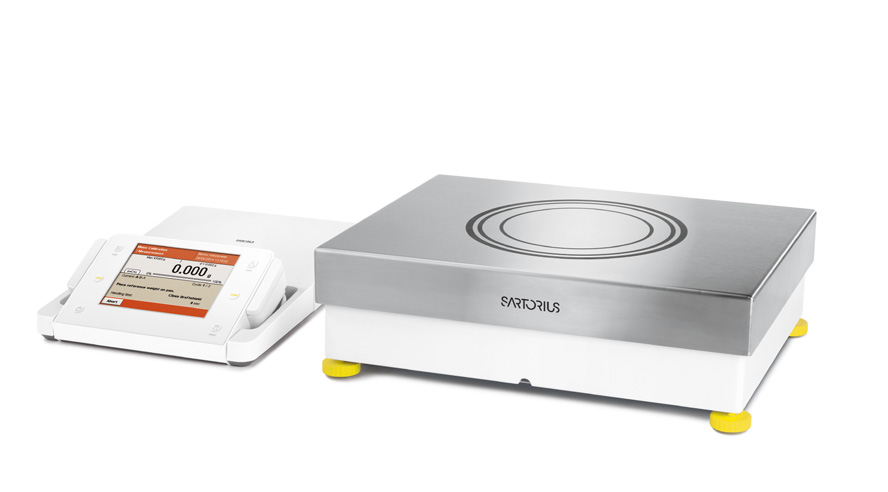

Sartorius Cubis MCM40K3 manual mass comparator alternate view

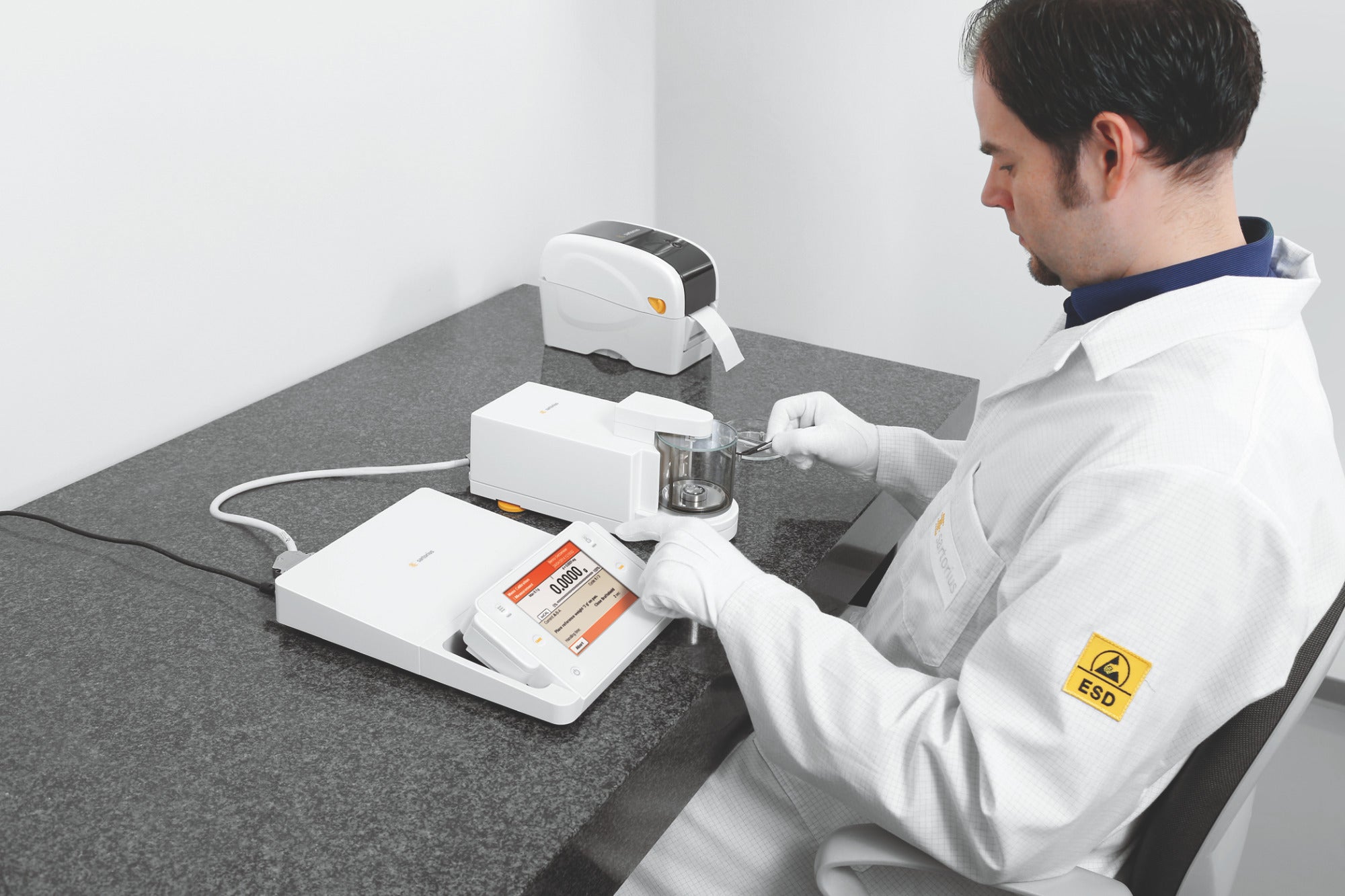

Sartorius Cubis MCM40K3 manual mass comparator in laboratory
Sartorius Cubis MCM40K3 manual mass comparator
Sartorius Cubis MCM40K3 manual mass comparator alternate view
Sartorius Cubis MCM40K3 manual mass comparator in laboratory

Sartorius Cubis® MCM40K3 Manual Mass Comparator

Vendor: Sartorius

Type: Manual Mass Comparator

SKU: MCM40K3

Explore specifications & documents
$45,171.36 USD
Shipping calculated at checkout.

Available in stock (500)

Request a quotation
  • Customs clearance fees may apply
  • Worldwide shipping available.
For research use only — not intended for clinical or diagnostic purposes.
Sartorius Cubis MCM40K3 manual mass comparator

Sartorius Cubis® MCM40K3 Manual Mass Comparator

$45,171.36 USD

THE SCIENCE, IN DETAIL

Know your product.

Specifications
Applications
Mass calibration; reference and test-weight comparison; metrology laboratories; regulated quality-control laboratories.
Climate sensors
Remote climate sensor tower; optional DAkkS-calibrated module
Cycle time abba
Not specified on current product page
Interfaces
RS-232C, USB, Ethernet, SD card
Specifications
Maximum Capacity: 41 kg Application Range: 0–41 kg Readability: 1 mg Typical Repeatability: 2 mg Repeatability at Nominal Load: 3 mg at 20 kg Repeatability at Low Load: 2 mg at 5 kg Electronic Weighing Range: 41 kg Linearity: 20 mg Eccentric Load Deviation: 3.5 mg/mm
Stabilization time
5 s
Scientific background
• Complete mass-standard laboratory in a single unit. • Integrated climate monitoring records the environmental data needed to determine measurement uncertainty. • Integrated workflow control supports efficient, error-reduced mass comparison and fast ABA, ABBA and AB1…BnA cycles. • Cubis® MSA color touchscreen enables quick configuration of parameters and workflows. • The climate module records temperature, humidity and air pressure. • Integrated calibration workflows support uncertainty evaluation in accordance with OIML and ASTM recommendations. • Adjustable filters adapt the comparator to ambient conditions. • Monolithic weighing technology supports stable measurement performance. • Electronics and the power supply are separated from the weighing system to reduce heat influence. • Eccentric-load compensation simplifies off-center loading without automatic centering. • Standard applications include density determination, statistics and individual identifiers. • Built-in SD card slot stores and transfers data and settings. • Graphical leveling guidance and reference-weight logging are included. • Continuous weighing-range display covers values from 0 g to maximum capacity. • USB, RS-232C and Ethernet interfaces support network and external-software integration.
Technical documents
