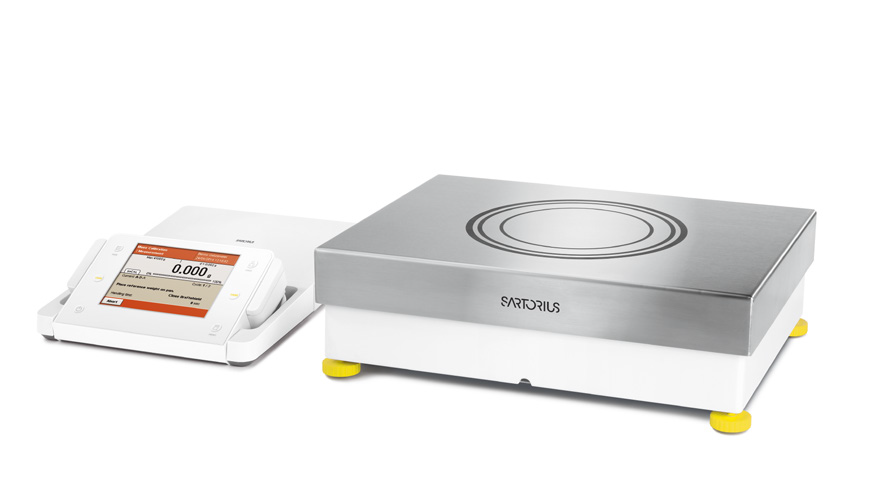

Sartorius Cubis® MCM60K2 Manual Mass Comparator

Name: Sartorius Cubis® MCM60K2 Manual Mass Comparator
Brand: Sartorius
Price: 39818.3 USD
Availability: InStock

Vendor: Sartorius

Type: Manual Mass Comparator

SKU: MCM60K2

$39,818.30 USD

Shipping calculated at checkout.

Documents

Datasheet

Manuals

Brochure

Available in stock (500)

Customs clearance fees may apply
Worldwide shipping available.

For research use only — not intended for clinical or diagnostic purposes.

Product Overview

Applications

Mass calibration; reference and test-weight comparison; metrology laboratories; regulated quality-control laboratories.

Climate sensors

External temperature, humidity and pressure module

Cycle time abba

120 s (ABBA)

Interfaces

RS-232C, USB, LAN

Specifications

Maximum Capacity: 64 kg Application Range: 0–64 kg Readability: 10 mg Typical Repeatability: 6 mg Repeatability at Nominal Load: 10 mg at 50 kg Repeatability at Low Load: Not specified Electronic Weighing Range: 64 kg Linearity: 50 mg Eccentric Load Deviation: 3.5 mg/mm

Stabilization time

5 s

Background

• Complete mass-standard laboratory in a single unit. • Integrated climate monitoring records the environmental data needed to determine measurement uncertainty. • Integrated workflow control supports efficient, error-reduced mass comparison and fast ABA, ABBA and AB1…BnA cycles. • Cubis® MSA color touchscreen enables quick configuration of parameters and workflows. • The climate module records temperature, humidity and air pressure. • Integrated calibration workflows support uncertainty evaluation in accordance with OIML and ASTM recommendations. • Adjustable filters adapt the comparator to ambient conditions. • Monolithic weighing technology supports stable measurement performance. • Electronics and the power supply are separated from the weighing system to reduce heat influence. • Eccentric-load compensation simplifies off-center loading without automatic centering. • Standard applications include density determination, statistics and individual identifiers. • Built-in SD card slot stores and transfers data and settings. • Graphical leveling guidance and reference-weight logging are included. • Continuous weighing-range display covers values from 0 g to maximum capacity. • USB, RS-232C and Ethernet interfaces support network and external-software integration.
