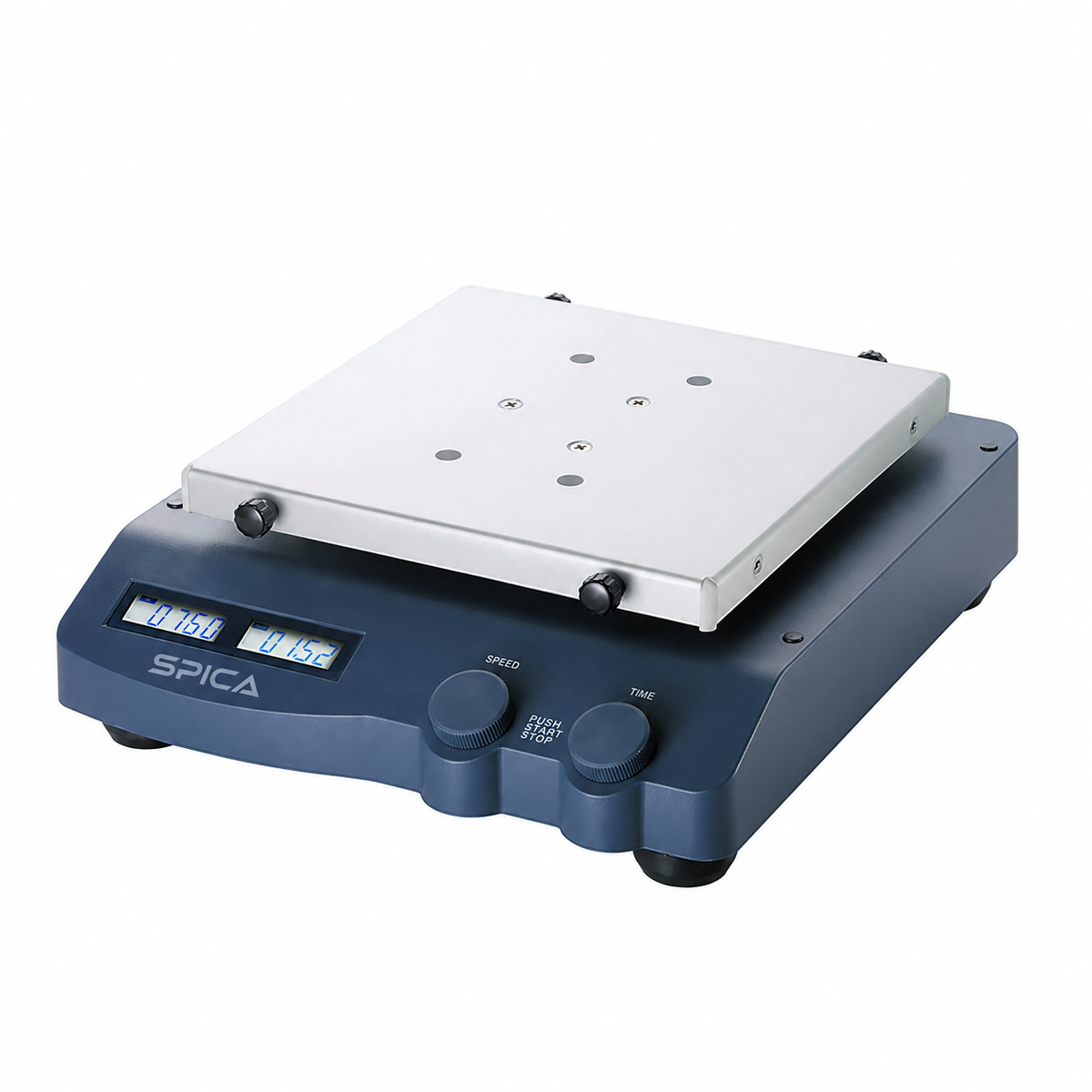

SPICA Orbital Shaker SP-SK-O330
The SPICA SP-SK-O330 orbital shaker brings adjustable mixing, digital monitoring and timed operation to the laboratory bench. Its brushless DC drive supports speeds from 100 to 500 rpm with a 10 mm...
Explore specifications & documentsAvailable in stock (276)
Couldn't load pickup availability
THE SCIENCE, IN DETAIL
Know your product.
Product overview
The SPICA SP-SK-O330 orbital shaker brings adjustable mixing, digital monitoring and timed operation to the laboratory bench. Its brushless DC drive supports speeds from 100 to 500 rpm with a 10 mm orbit.
Key features
- Supports loads up to 7.5 kg, including the platform.
- LCD readouts for speed and time.
- Adjustable timer from 1 minute to 99 hours 59 minutes.
- RS232 connection for data communication.
- Universal 100–240 V, 50/60 Hz power input.
Technical specifications
| Model / SKU | SP-SK-O330 |
|---|---|
| Orbital diameter | 10 mm |
| Maximum load including platform | 7.5 kg |
| Speed range | 100–500 rpm |
| Motor | Brushless DC |
| Motor input / output | 28 W / 15 W |
| Speed and timer displays | LCD |
| Timer | 1 min–99 h 59 min |
| Power supply | 100–240 V, 50/60 Hz |
| Rated power | 30 W |
| Ambient conditions | 5–40 °C; 80% RH |
| Protection rating | IP21 |
| Data interface | RS232 |
| Dimensions (W × D × H) | 530 × 480 × 170 mm |
| Shipping dimensions | 600 × 500 × 230 mm |
| Net / gross weight | 13.5 / 14.5 kg |
Downloads
Download SPICA SP-SK-O330 Datasheet (PDF)
Confirm supplied accessories when ordering. Specifications are subject to change.
