Disc Polarimeter | SPICA
SPICA Disc Polarimeter POL-D4 A manual disc polarimeter for measuring optical rotation in transparent samples. The sodium-light optical system and interchangeable sample tubes provide a dependable, traditional method for sugar, pharmaceutical and...
Explore specifications & documentsDocuments
Available in stock (1000)
Couldn't load pickup availability
THE SCIENCE, IN DETAIL
Know your product.
Product overview

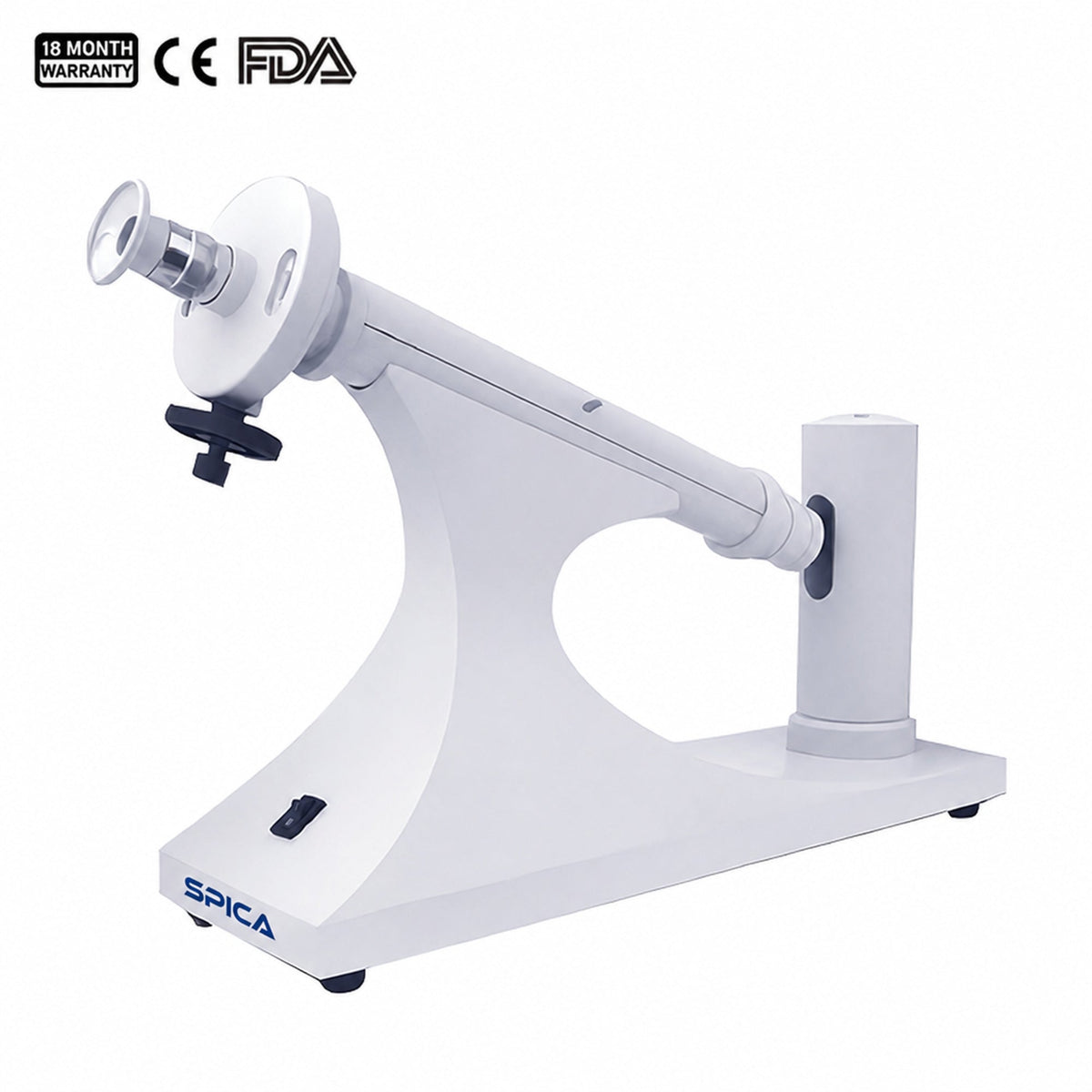

SPICA Disc Polarimeter POL-D4
A manual disc polarimeter for measuring optical rotation in transparent samples. The sodium-light optical system and interchangeable sample tubes provide a dependable, traditional method for sugar, pharmaceutical and chemical analysis.
Key Features
- Manual optical-rotation measurement
- Sodium D-line illumination at 589 nm
- Vernier reading to 0.05°
- Three-times magnification
- Supplied for multiple tube lengths
Technical Specifications
| Model | POL-D4 |
|---|---|
| Measurement range | ±180° |
| Light wavelength | 589 nm |
| Scale division | 1° |
| Vernier resolution | 0.05° |
| Magnification | 3× |
| Tube lengths | 50 / 100 / 200 mm |
| Dimensions | 500 × 135 × 330 mm |
Typical Applications
Sugar and food analysis, pharmaceutical raw materials, chemical identification, optical-purity checks and teaching laboratories.
