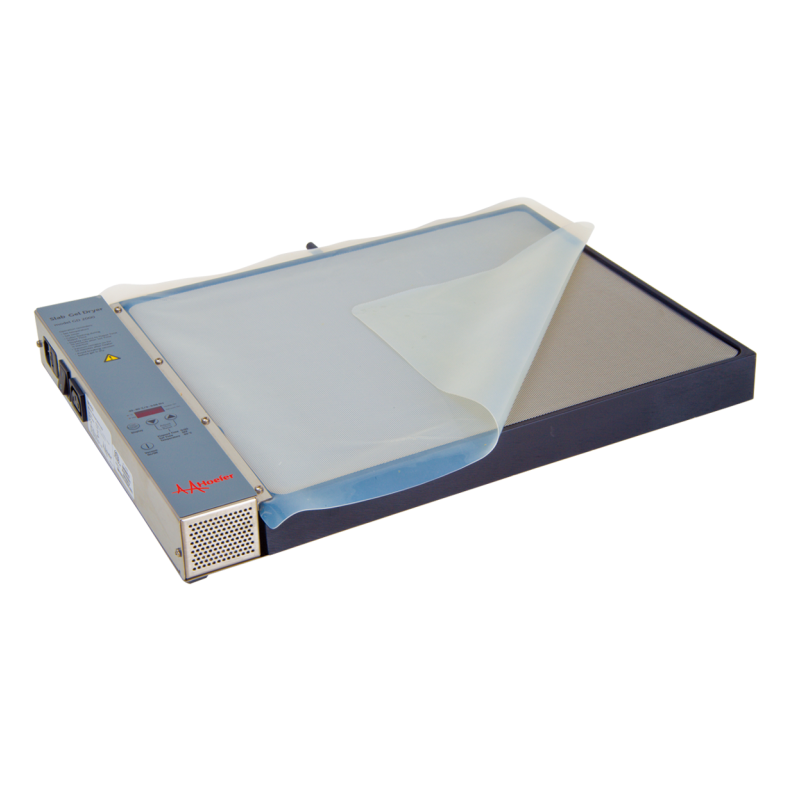

Vacuum Gel-Drying System, 115 VAC,Basic

Name: Vacuum Gel-Drying System, 115 VAC,Basic
Brand: Hoefer Inc.
Price: 2900.0 USD
Availability: InStock

Vendor: Hoefer Inc.

$2,900.00 USD

Shipping calculated at checkout.

Documents

Manuals

Available in stock (100)

Customs clearance fees may apply
Worldwide shipping available.

For research use only — not intended for clinical or diagnostic purposes.

Product Overview

Purchase unit of measure

PK

Component quantity

1

Country of origin

US

Selling um1

PK

Product weight (lb)

65

Width × Height (inch)

30 × 30

Length (inch)

35

Storage temp

RT

Background

Technical Specifications: Maximum Operating Ranges: Heater . . . . . . . . . . . . . . . . . . 800 W, thermostatically controlled Independent Pump Outlet . . . 575 W Power Requirements . . . . . . . . . 115 VAC, 50/60 Hz Environmental Operating Conditions: Indoor Use . . . . . . . . . . . . . . 15-40°C Humidity . . . . . . . . . . . . . . . . Up to 80% for 15-31°C, decreasing linearity to 50% for 31-40°C Unit Dimensions (w x h x d) . . . 55.0 x 8.5 x 43.5 cm Safety Certifications . . . . . . . . . . EN61010-1, UL61010A-1, CSA22.2 1010.1, CE Advantages: Dries acrylamide and agarose gels as large as 33 x 44 cm in as little as 30 minutes Heat and vacuum are applied from beneath the gel through a heavy aluminum platen for even heat and vacuum distribution under the gel Independent timers for heat and for vacuum Thermostat adjusts from 40 to 80°C ± 2°C A quiet, oil-free diaphragm pump maintains the low vacuum necessary for rapid gel drying Includes: • GD2000 Gel Dryer w/Silicone Rubber Overlay Sheet • VP200 Vacuum PumpStainless Steel Screen • Porous Polyethylene Cover Sheet • Mylar® Cover Sheet • Porous Cellophane–50 sheets • Filter Paper–10 sheets
