Disposable Cell Counting Plates (Hemocytometers) | WATSON

WATSON Disposable Cell Counting Plates (Hemocytometers). Select the catalogue number below and check the configuration and sales pack before ordering.

Pricing unit: The price applies to the full sales pack listed below, which may contain several manufacturer units.

Product details

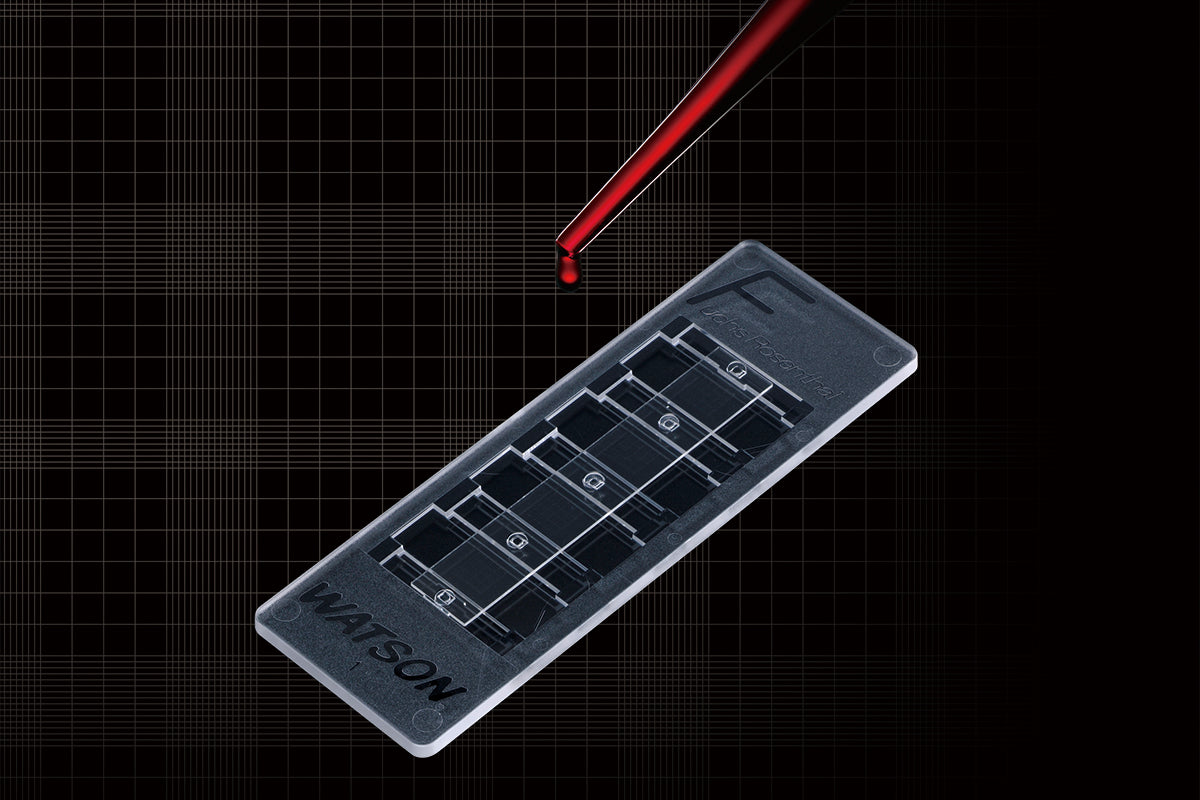

• Disposable Cell Counting Plate (4 grid)
• Cost-saving as 4 times per plate. Better grid linearity & smoothness, and lower cost compared with glass plate. Easy to count due to clear visibility. Plastic cover film is originally set on the plate. All plastic construction makes disposal convenient. Plate size: W 76 mm × D 26 mm × H 2.2 mm
• Groove-Like Grid Lines Formation
• The grid lines are engraved in a groove-like manner, similar to glass, so cells are less likely to get caught. The linearity and smoothness of the grid are superior to glass, making it easier to see even the smallest details.
• ■ WATSON (Grid lines are in the groove form)
• ■ Other Companies (Grid lines are convex)
• ■ Glass (Grid lines are rough)
• 4 Grid patterns are available for choice
• Neubauer Improved 177-112C
• Burker-Turk 177-212C
• Thoma 177-312C
• Fuchs Rosenthal 177-512C
• The sample injection volume has been changed to 6µL for the Neubauer type, Burker-Turk type, and Thoma type, and to 12µL for the Fuchs Rosenthal type.
• Packaged in a plastic case
• The plastic case prevents damage and stores cell counters safely and cleanly.
• The set plastic cover provides easy handling
• The plastic cover is originally set on the plate and it helps to reduce fluctuation of cell count caused by operator’s skill. Since it’s all plastic, including the cover glass, there’s no need for sorting, and it can be disposed of all together. A single-use type that requires no cleaning operation. It’s also effective as a biohazard precaution. The accuracy of the grid has been confirmed by electron microscopy, and the height of the chamber is carefully checked during manufacturing.
• 1. Pipette 6 µL of a sample（ 12 µL only for Fuchs Rosenthal）into inlet.
• ※When injecting samples, please insert the tip of the pipette into the gap. If it’s difficult to inject, pipetting several times may help.
• 2. Set a Cell Counter Plate on microscope and leave it for 2 – 3 minutes. 3. Count cells. 4. Calculate using a specified formula.

Specifications and ordering information

Downloads

• Catalog (PDF)
• Product brochure (PDF)
• Instruction manual (PDF)
